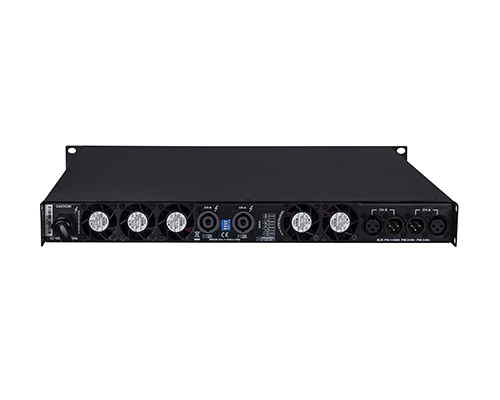

H2-3000
2 Channel 3000W 8ohms Amplifier
Features

1. Rated Output Power 8Ω/Stereo: 2×3000W
2. Rated Output Power 4Ω/Stereo: 2×5100W
3. Rated Output Power 2Ω/Stereo: 2×7140W
4. Rated Output Power 16Ω/Bridge: 1×6000W
5. Rated Output Power 8Ω/Bridge: 1×10200W
6. Rated Output Power 4Ω/Bridge: 1×14280W
7. Output RMS voltage: 154.9V
8. Slew rate: 50V/us
9. Gain: Selectable:41dB,38dB,35dB,32dB
10. THD+N: 0.01%
11. IMD-SMPTE: 0.01%
12. Cross-talk: ≥90 dB
13. Frequency Response: ±0.2dB
14. Input impedance: 20kΩ(balance) ,10kΩ(unbalance)
15. Damp factor(8Ω,20Hz-200Hz): ≥5000
16. SNR(A weighted 20Hz-22kHz): ≥115dB
17. Main power: 90~260VAC,50~60 Hz
18. Protection: Under voltage, DC, Over temperature, Over load limiter, Short protection.
19. Size(W×H×D): 483×44×465mm
20. Net Weight: 13kg
